EEG to lamp brightness

Introduction

An EEG signal contains a multitude of frequencies which can give us an idea of what state the subject is in. For example, frequencies in the alpha range (8Hz - 13Hz) can indicate that the subject is relaxed and has their eyes closed. In this code example, the aforementioned phenomenon is creatively applied to control a lamp based on the subject’s relaxedness. If the subject relaxes and power in the alpha band increases, the LEDs increase in brightness and turn yellow.

If the power in the alpha band decreases, the LEDs dim and turn turquoise.

This application is intended to showcase how scientific concepts can be explored and applied in non-scientific contexts and particularly how data extracted from EEG can be used for individualised biofeedback in a novel and fun way.

Requirements

Mentalab Explore
Arduino board
LED strip that is supported by FastLED
A Python 3 installation.

We strongly recommend using Anaconda to install Python and using version 3.12.

Setting up the environment and dependencies

Set up an environment with Python version 3.12 with conda and activate it:
```
conda create -n eeg2lamp python=3.12
conda activate eeg2lamp
```
Install liblsl, which is required by explorepy, via conda-forge:
```
conda install -c conda-forge liblsl
```

Install the dependencies via pip:

pip install explorepy matplotlib mne pyserial numpy scipy

Running the example

The code for this example, eeg2lamp.py for the Python script and EEG_LAMP_ARDUINO.ino for the Arduino sketch, can be found in examples/eeg2lamp inside the GitHub repository for explorepy:

https://github.com/Mentalab-hub/explorepy/

Adapting the Python script to your needs

You can run the Python script in the environment you’ve set up by calling python -m eeg2lamp and supplying command line arguments according to your needs:

Argument Description Required Default

Argument	Description	Required	Default
`-n, --name`	The name of your device, i.e. `Explore_ABCD`	yes	-
`-sr, --sampling_rate`	The sampling rate to set the device to	no	`None` / current device sampling rate
`-p, --port`	The port that the Arduino is connected to, i.e. `/dev/cu.usbserial-1234`	no	`None`
`-fn, --notch`	The frequency to use for the notch filter	no	`None`
`-fbp, --bandpass`	The frequencies to use for the bandpass filter	no	`None`
`--simulate_lamp`	Whether to add a second plot to the window that simulates the brightness and colour change	no	`False`
`-f, --from_file`	A file path to a `.bdf` recording to use as input to the script and Arduino instead of a real device connection	no	`None`
`-l, --loop`	Whether to loop the `.bdf` file once the end is reached, if `-f` is supplied	no	`False`

-n, --name

The name of your device, i.e. Explore_ABCD

yes

-sr, --sampling_rate

The sampling rate to set the device to

None / current device sampling rate

-p, --port

The port that the Arduino is connected to, i.e. /dev/cu.usbserial-1234

None

-fn, --notch

The frequency to use for the notch filter

None

-fbp, --bandpass

The frequencies to use for the bandpass filter

None

--simulate_lamp

Whether to add a second plot to the window that simulates the brightness and colour change

False

-f, --from_file

A file path to a .bdf recording to use as input to the script and Arduino instead of a real device connection

None

-l, --loop

Whether to loop the .bdf file once the end is reached, if -f is supplied

False

For example, to run the script with default values for the device Explore_ABCD and not connect to an Arduino or simulate a lamp:

python -m eeg2lamp -n Explore_ABCD

An example that additionally sets a Notch filter at 50.0Hz, a bandpass filter with a low cutoff of 3.0Hz and a high cutoff of 40.0Hz, connects to an Arduino on port /dev/cu.usbserial-1234 and also simulates a lamp in the plot:

python -m eeg2lamp -n Explore_ABCD -fn 50.0 -fbp 3.0 40.0 -p /dev/cu.usbserial-1234 --simulate-lamp

An example that runs from a pre-recorded file sample/file.bdf instead and loops it when its end is reached:

python -m eeg2lamp -n Explore_ABCD -p /dev/cu.usbserial-1234 --simulate-lamp -f sample/file.bdf --loop

The script still expects a device name to be passed. This name is ignored later when the -f parameter is supplied.

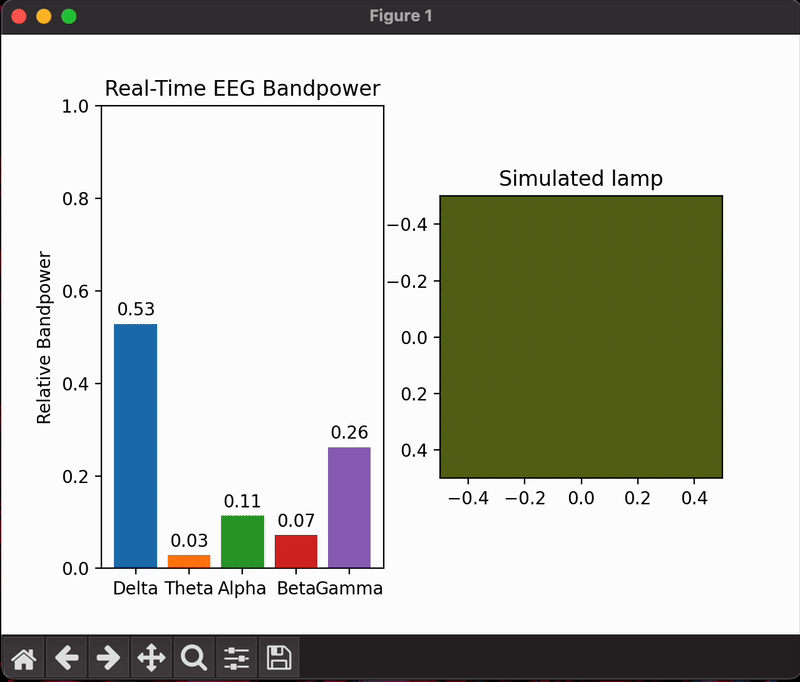

The plot containing current bandpowers as bar plots and the expected lamp colour next to it.

Adapting the Arduino sketch to your needs

The supplied Arduino sketch was written with a specific LED strip in mind. In order to run the example for your setup, you need to know your LED strip type, how many LEDs it has and which data pin on the Arduino it is connected to. You need to change lines 4-6 to fit your needs:

#define LED_PIN     3
#define NUM_LEDS    80
#define LED_TYPE    WS2811

You can find the possible LED types for clockless LEDs in this documentation page. If you are using an LED with a clock, please refer to the FastLED documentation for how to properly connect and address it.

In our example, the colour ordering of the chipset was not RGB but GRB instead, hence line 7:

#define COLOR_ORDER GRB

If your LED strip’s chipset uses RGB ordering, you can remove this line. If it uses another kind of ordering, you can change this line to fit what your chipset uses. You can refer to this documentation page for the possible enum values. If you don’t know what ordering your LED strip’s chipset uses, you can either figure it out using trial and error or you can run FastLED’s calibration example to find out what ordering your chipset uses.

The colours the Arduino transitions between are defined in lines 16 and 17:

CRGB color_low  = CRGB(0, 255, 180);   // turqouise
CRGB color_high = CRGB(255, 200, 0);   // yellow

You can change these to any two colours you want to transition between.

Running the Python script and the Arduino sketch

The easiest way to run the Arduino sketch is by using Arduino IDE 2.

Connect your Arduino, with the LED strip’s data-in pin connected to the Arduino’s data pin, to your computer with a USB cable. Then, open the Arduino IDE, open the EEG_LAMP_ARDUINO.ino sketch and select your board from the drop-down menu at the top.

Click on the library manager symbol in the left menu, search for FastLED and install it.

Finally, upload the sketch to the connected Arduino by clicking on the arrow button in the top menu.

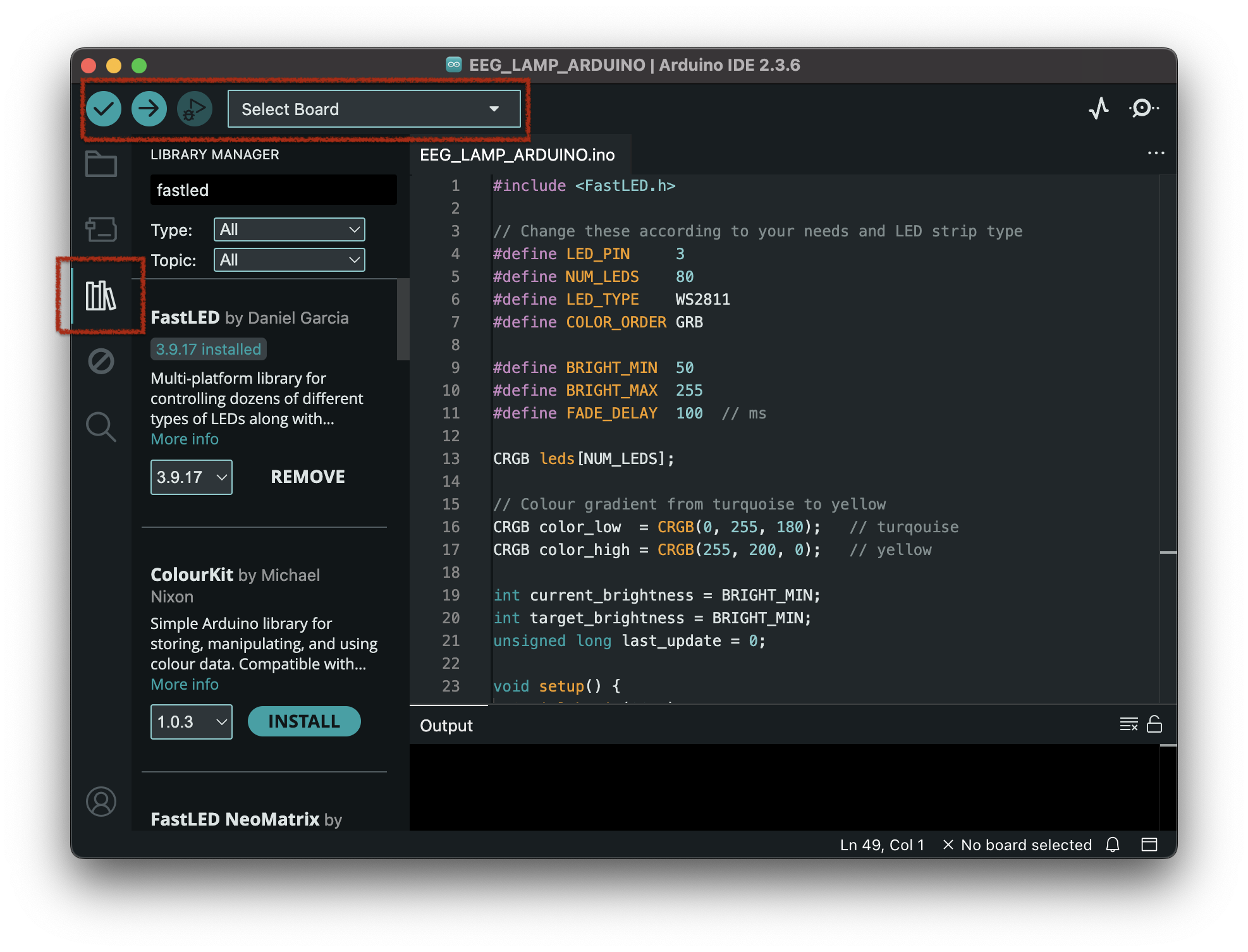

The Arduino IDE with the relevant top menu items and library manager button on the left marked in red.

To launch the Python script, simply run it as outlined above and supply the port the Arduino is connected to with the -p parameter. The port is also listed in the drop-down menu in the Arduino IDE.

That’s it. If everything is connected properly, the LED strip is addressed correctly and your Explore device gets a good EEG signal from your head, you will see the LEDs react to your alpha bandpower in real-time.

If you need help with getting a good signal, please refer to the Lowering Impedance page.

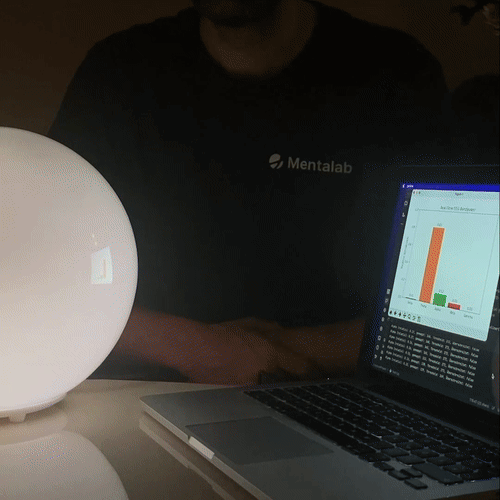

The lamp, connected via Arduino to the PC running the Python script, increasing and decreasing its brightness according to increasing and decreasing alpha bandpower.

The alpha bandpower corresponds to the green bar plot.
