Sleep EEG Analysis

Modern sleep science is strongly informed by ExG biosensors that record brain activity, eye-movement activity, and muscle activity. These modalities are usually referred to as electroencephalography (EEG), electrooculography (EOG), and electromyography (EMG).

This guide demonstrates how EEG data recorded during a full night of sleep with Mentalab Explore can be analysed with the free and open-source YASA toolbox. The workflow includes automatic sleep staging with the YASA classifier [1], EEG band-power inspection, slow-wave detection, and sleep-spindle detection. The application example follows the YASA notebooks.

Data acquisition

A volunteer recorded sleep with an 8-channel Mentalab Explore device. The following montage was used:

Channel Type Electrode Position

0

REF

adhesive

TP10, right mastoid

1

EOG

adhesive

Above right eye

2

EOG

adhesive

Outer canthus, right eye

3

EMG

adhesive

Submental, below chin

4

EEG

dry

O2

5

EEG

dry

C2

6

EEG

dry

F2

7

EEG

adhesive

C1

8

EEG

wet

Fc1

Clip cables were used to connect to adhesive and dry electrodes. Dry electrodes use flexible brushes to establish contact.

Impedances were not lowered after positioning the electrodes. Refer to the Sleep Recording Protocol for detailed recommendations on preparation, data transfer, and conversion of the recorded BIN file to .csv or .bdf files.

Sleep data analysis

Software preparation

First, prepare a conda virtual Python environment for the project.

  1. Install Anaconda:

    Anaconda installation documentation

  2. Create a virtual Python environment using conda:

    conda create -n myenv python=3.10

  3. Activate the conda environment:

    conda activate myenv

  4. Install the required packages:

    pip install numpy mne yasa

Data processing

Load the required Python packages.

import mne
import yasa
import numpy as np
import matplotlib.pyplot as plt

Next, load the .csv file containing the sleep data recorded with Mentalab Explore and convert it to an MNE raw data object.

The example expects data recorded at 250 Hz with an 8-channel device. Note that MNE expects data in volts (V), whereas Mentalab Explore stores data in microvolts (µV).

ch_names = ['EOG-above', 'EOG-canthus', 'EMG-chin', 'Dry-O2', 'Dry-C2', 'Dry-F2', 'Sticky-C1', 'Wet-Fc1']
data = np.loadtxt("./data/wiki-sleep-analysis-data/Mentalab-sleep-analysis_ExG.csv", skiprows=1, delimiter=',').transpose()[1:9]
sf = 250
ch_types = ["eog", "eog", "emg", "eeg", "eeg", "eeg", "eeg", "eeg"]
info = mne.create_info(ch_names=ch_names, sfreq=sf, ch_types=ch_types)
raw = mne.io.RawArray(data, info)
raw.apply_function(lambda x: x * 1e-6) # scale muV to V

Apply a band-pass filter with a low cutoff of 0.1 Hz and a high cutoff of 40 Hz.

raw.filter(0.1, 40) # Apply a bandpass filter from 0.1 to 40 Hz

Detecting sleep stages

Next, apply the YASA sleep stage classification algorithm [1]. The only required input is one EEG channel. The algorithm can also receive one EOG channel, one EMG channel, participant age, and participant sex, but these inputs are optional. The EEG channel accounts for most of the classifier performance [1].

sls = yasa.SleepStaging(raw, eeg_name="Sticky-C1")
y_pred = sls.predict() # Get the predicted sleep stages

hypno = yasa.Hypnogram(y_pred) # Getting a hypnogram for later
hypno_int = yasa.hypno_str_to_int(y_pred)
hypno_up = yasa.hypno_upsample_to_data(hypno=hypno_int, sf_hypno=(1/30), data=data, sf_data=sf)

Inspecting band power

Sleep stages are typically associated with activity in specific EEG frequency bands. N3 sleep is defined by slow waves in the delta band, while REM sleep is associated with increased alpha-frequency power.

The following code computes relative power for the sleep stages Wake, N1, N2, N3, and REM across common frequency bands.

data_filt = raw.get_data() * 1e6
data_c1_uV = data_filt[6]
bandpower_stages = yasa.bandpower(data_c1_uV, sf=100, win_sec=4, relative=True, hypno=hypno_up, include=(0, 1, 2, 3, 4))
bandpower_avg = bandpower_stages.groupby('Stage')[['Delta', 'Theta', 'Alpha', 'Sigma', 'Beta', 'Gamma']].mean()
bandpower_avg.index = ['Wake', 'N1', 'N2', 'N3', 'REM']

Inspecting the relative band power shows increased delta and decreased theta activity in N3 sleep compared with wakefulness. Alpha activity is increased in N1 and REM sleep compared with deeper N2 and N3 sleep stages.

print(bandpower_avg)
      Delta     Theta     Alpha     Sigma     Beta      Gamma
Wake  0.689047  0.252754  0.041008  0.013561  0.003619  0.000011
N1    0.805558  0.156776  0.026298  0.008975  0.002385  0.000009
N2    0.860466  0.122272  0.011644  0.004467  0.001142  0.000010
N3    0.934785  0.058335  0.004424  0.001922  0.000521  0.000014
REM   0.848217  0.115585  0.025746  0.008503  0.001937  0.000010

Spectrogram and hypnogram

A hypnogram is a visual representation of sleep stages over the course of the night. In Figure 1, the hypnogram is combined with a spectrogram showing frequency content over time.

The hypnogram shows a typical pattern, with deeper sleep stages in the first half of the night and longer REM stages in the second half. The spectrogram shows power in frequency bands associated with the corresponding sleep stages.

Clinical sleep recordings are usually scored by trained professionals according to the AASM guidelines. The hypnogram shown here is based on automatic sleep detection from the classifier.
fig = yasa.plot_spectrogram(data_c1_uV, sf, hypno=hypno_up, fmax=30, cmap='Spectral_r', trimperc=5)
fig.show()

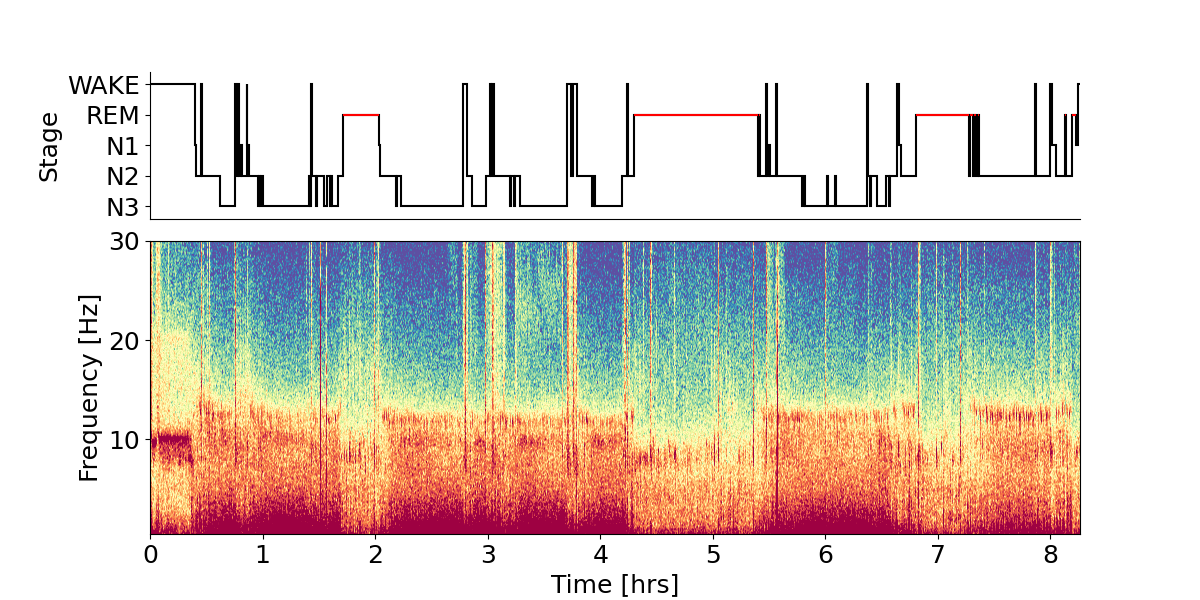

Spectrogram and hypnogram

Figure 1. Hypnogram derived from sleep stage classification with the YASA classifier. The spectrogram shows the frequency content of the corresponding electrode over time. Data were recorded using Mentalab Explore.

Slow wave and sleep spindles detection

Slow waves are a hallmark of N3 sleep, also known as slow-wave sleep. With frequencies between 0.5 Hz and 3 Hz, they are part of the delta frequency band.

The YASA toolbox provides a slow wave detection algorithm, based on previous work [2] [3], that can be used to inspect individual and averaged slow waves.

Calling the slow wave summary function provides an overview of the timing and properties of the detected slow waves.

sw = yasa.sw_detect(data_c1_uV, sf, hypno=hypno_up)
sw.summary()
        Start    NegPeak  MidCrossing    PosPeak        End  Duration  ValNegPeak  ValPosPeak         PTP       Slope  Frequency  Stage  Channel  IdxChannel
0     1579.324   1579.600     1579.860   1580.076   1580.400     1.076 -110.009728   70.868551  180.878280  695.685692   0.929368      2  CHAN000           0
1     1833.080   1833.328     1833.560   1833.844   1834.144     1.064  -43.119826   50.537236   93.657062  403.694232   0.939850      2  CHAN000           0
2     1834.144   1834.452     1834.736   1834.896   1835.060     0.916  -64.484388   26.909410   91.393798  321.809148   1.091703      2  CHAN000           0
3     1895.844   1896.224     1896.560   1896.808   1897.060     1.216  -55.624535   42.378489   98.003024  291.675667   0.822368      2  CHAN000           0
4     1935.872   1936.280     1936.700   1936.832   1936.984     1.112  -83.590539   10.574031   94.164569  224.201355   0.899281      2  CHAN000           0
..         ...        ...          ...        ...        ...       ...         ...         ...         ...         ...        ...    ...      ...         ...
966  29275.144  29275.496    29275.784  29276.000  29276.756     1.612 -123.916814   68.232216  192.149031  667.184134   0.620347      2  CHAN000           0
967  29276.756  29277.024    29277.292  29277.484  29277.780     1.024  -80.189417   37.322052  117.511469  438.475632   0.976562      2  CHAN000           0
968  29351.656  29351.996    29352.252  29352.468  29352.712     1.056  -80.538877   63.521518  144.060395  562.735919   0.946970      2  CHAN000           0
969  29353.720  29354.168    29354.448  29354.660  29354.980     1.260  -60.494303   36.531033   97.025336  346.519058   0.793651      2  CHAN000           0
970  29444.048  29444.400    29444.704  29444.924  29445.248     1.200 -166.011564   85.047673  251.059236  825.852751   0.833333      2  CHAN000           0

Figure 2 shows the average slow wave, computed from 971 detected slow wave events.

sw.plot_average(time_before=0.4, time_after=0.8, center="NegPeak");
plt.legend(['C1'])
plt.show()

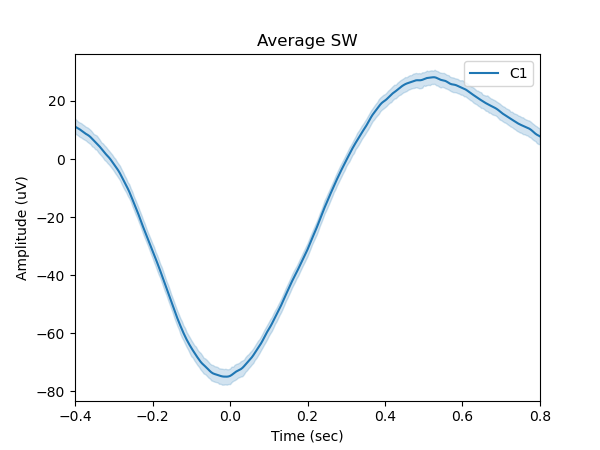

Average slow wave

Figure 2. Average of the slow waves detected by the YASA toolbox. Data were recorded using Mentalab Explore.

Sleep spindles are short oscillatory bursts that typically occur during N2 sleep and fall in the frequency range between 11 Hz and 16 Hz.

Using the same workflow as before, run the spindle detection algorithm, based on previous work [4]. Calling the sleep spindle summary function provides an overview of the timing and properties of the detected sleep spindles.

sp = yasa.spindles_detect(data_c1_uV, sf)
sp.summary()
        Start       Peak        End  Duration   Amplitude        RMS  AbsPower  RelPower  Frequency  Oscillations  Symmetry  Channel  IdxChannel
0        8.720      8.864      9.396     0.676   56.961351  11.090094  2.100221  0.322695  11.315217           8.0  0.211765  CHAN000           0
1       53.476     53.532     54.152     0.676  147.736709  28.034810  2.648341  0.305501  12.936249           8.0  0.082353  CHAN000           0
2     1399.952   1400.424   1400.636     0.684   58.795353  11.988885  1.960096  0.266393  13.047958           8.0  0.686047  CHAN000           0
3     1444.672   1444.860   1445.176     0.504   49.023655  11.592732  2.043340  0.243198  13.838615           7.0  0.370079  CHAN000           0
4     1496.024   1496.072   1496.672     0.648   37.978448  10.030894  1.689857  0.238392  13.444519           8.0  0.073620  CHAN000           0
..         ...        ...        ...       ...         ...        ...       ...       ...        ...           ...       ...      ...         ...
519  29412.916  29413.096  29413.660     0.744   37.617005   8.592611  1.851378  0.323409  12.606909           8.0  0.240642  CHAN000           0
520  29418.196  29419.088  29419.892     1.696   73.779483  14.525022  2.380002  0.519697  12.552197          21.0  0.524706  CHAN000           0
521  29423.800  29425.016  29425.484     1.684   58.250863  11.203151  1.982496  0.389862  12.449155          21.0  0.720379  CHAN000           0
522  29451.216  29452.136  29452.268     1.052   46.337193  10.750559  2.002255  0.438899  12.765855          13.0  0.871212  CHAN000           0
523  29467.156  29467.684  29468.148     0.992   49.976640   9.770195  1.971178  0.429425  12.662866          12.0  0.530120  CHAN000           0

Figure 3 shows the average sleep spindle, computed from 524 detected spindle events.

sp.plot_average(time_before=0.6, time_after=0.6);
plt.legend(['C1'])
plt.show()

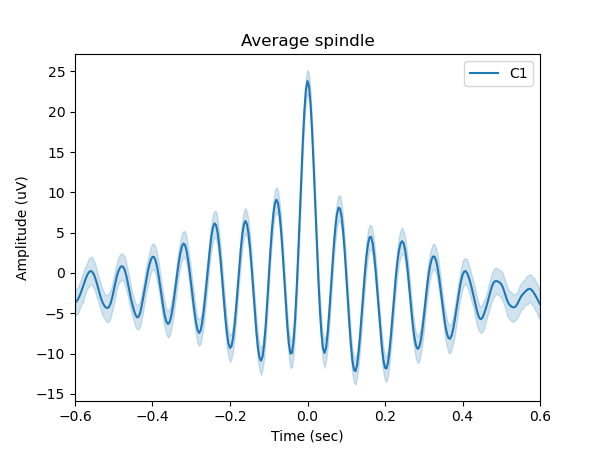

Average sleep spindle

Figure 3. Average of the sleep spindles detected by the YASA toolbox. Data were recorded using Mentalab Explore.

Closing words

Whether used for controlled laboratory research, in-home sleep studies, or sleep monitoring applications, Mentalab Explore can provide research-grade ExG data and an efficient workflow for extracting sleep-related insights.

For previous applications of Mentalab Explore in sleep science, see Biller et al. [5], who conducted a longitudinal sleep study, and Hainke et al. [6], who investigated gamma oscillations and consciousness during sleep using steady-state visually evoked potentials (SSVEPs).

For more information or support, contact support@mentalab.com.
